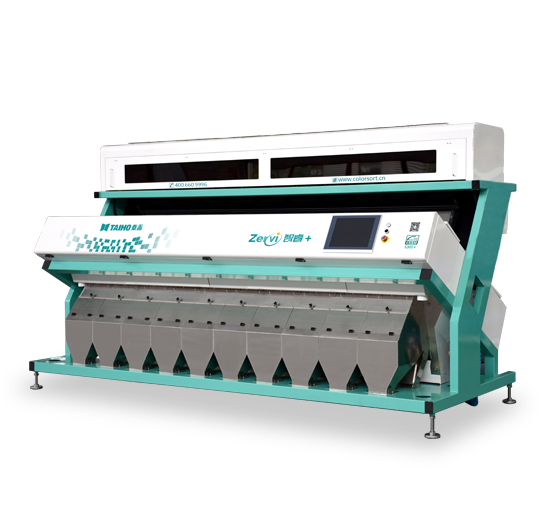

zervi+series COLOR SORTER
Product Specifications
PRODUCT SPECIFICATIONS
|
Model |
Size(mm) |
Power(kw) |
Output(t/h) |
Weight(kg） |
Power Input |
| 6SXZ-126S+ |
1284*1520*2090 |
1.3 |
0.5~4.0 |
723 | -220V/50HZ |
| 6SXZ-189S+ | 1598*1520*2090 |
1.9 |
1.0~5.0 |
891 | -220V/50HZ |
| 6SXZ-252S+ |
1912*1520*2090 |
2.4 |
1.5~6.0 |
1030 |
-220/50HZ |
| 6SXZ-315S+ |
2226*1520*2090 |
3.0 |
2.0~7.0 |
1160 |
-220V/50HZ |
| 6SXZ-378S+ | 2540*1520*2090 |
3.6 |
2.5~8.0 |
1355 |
-220V/50HZ |
| 6SXZ-441S+ | 2854*1520*2090 |
4.1 |
3.0~9.0 |
1575 |
-220V/50HZ |
| 6SXZ-504S+ | 3168*1520*2090 |
4.7 |
3.5~10.0 |
1740 |
-220V/50HZ |
| 6SXZ-630S+ | 3796*1520*2090 |
5.8 |
4.0~11.0 |
2130 |
-220V/50HZ |
| 6SXZ-756S+ | 3796*2785*1940 |
7.2 |
12.0~14.5 |
2466 |
-220V/50HZ |
| 6SXZ-1008S+ | 3796*2785*1940 |
9.4 |
16.0~20.0 |
2983 |
-220V/50HZ |
Descriptions:
The above color sorting performance takes about 2% wheat as example. specific indicator will charge with different materials and impurities.
The product is updated without further notice, but the fact of machine will prevail.
